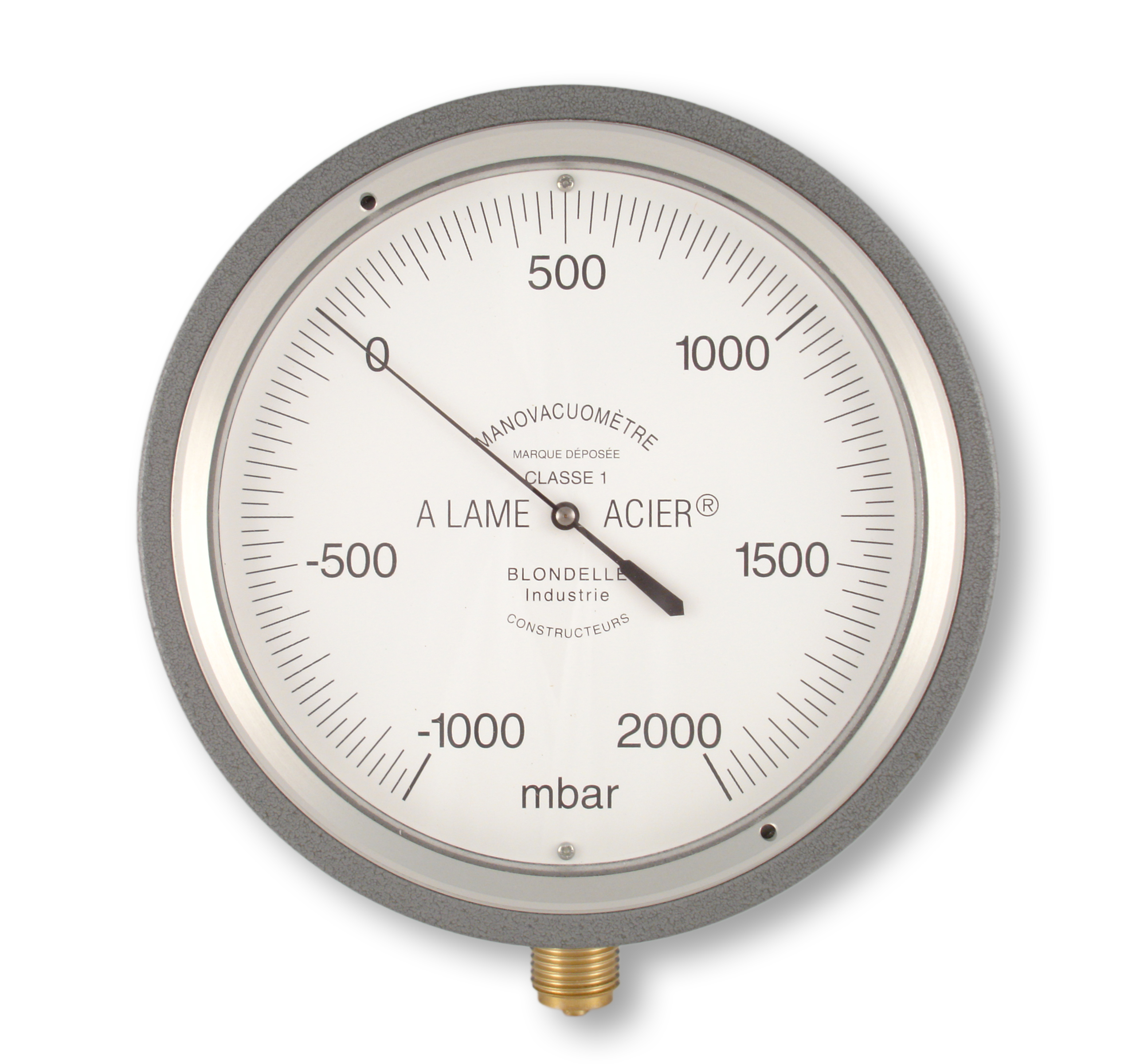

Ø 180 Manometer, Aluminium, Dicht.


Ø 180 Manometer, Aluminium, Dicht

Construction features

  • Connection: vertical or rear, brass
  • Light alloy case, hammered gray epoxy coating
  • Glass Polymetacrylate
  • Glass fixation: by collar
  • Manometric element:
    • material: tombac
    • assembly: tin solder
  • Zeroing screw accessible from the outside
  • Brass amplifier mechanism
  • Security vent

Threads

  • M10x100 - 15x150 - 20x150
  • 1/8 GAZ co.
  • 1/4 GAZ cyl. - 3/8 GAZ cyl. - 1/2 GAZ cyl.
  • 1/8 BRIGGS co. - 1/4 BRIGGS co. - 1/2 BRIGGS co.
  • Other threads: contact us

Fixings

  • By mounting bracket (surface mounting)
  • By fastening clamp (through mounting)

Accessories

  • Nut, socket & seal
  • Plastic storage case, with protective foam

Services

  • Calibration or re-calibration with 6 point certificate, Retracable to a COFRAC or BELAC attached national standard.
  • Repair Services

Technical specifications

  • Accuracy :
    • Industry: ± 1% end of scale: Class 1
    • Laboratory: ± 1% of reading (maximum scale 100 bar)
    • Verification: ± 0.5% of reading (maximum scale 50 bar)
  • Operating temperature: - 40 + 70 ° C
  • Accidental pressure:
    • 200% for scales below 50 bar
    • 150% for scales between 50 and 100 bar
    • 125% for scales over 100 bar
  • Range of the scale: 300 °
  • List of available dials: see attached table

Options

  • Silver solder assembly (for temperatures above 70°C)
  • Stainless version (max. scale 60 bar), Manometric element and all parts in contact with the fluid in stainless steel
  • Absolute Calibration
  • Oxygen version
  • Vacuum drying of the manometric element
  • Filling of the pressure element with buffer fluid: glycerin, only type «Industry»
  • Security event
  • Zeroing screw equipped with knurled knob
  • Maximum indicator system by follower needle, only type «Industry»
  • Index needle
  • Overload stop
  • Serialnumber printed on the dial
  • Custom dial at the customer’s request
